Introduction:

CPE-Q9 It is the latest 4G LTE WiFi router with LTE Category 6, provides a wireless transmission speed up to 1200Mbps.

- Produce a 2.4GHz 5.8G WiFi hotspot with a powerful 300 square meter WiFi coverage

- Internet connection sharing reaches to 64 WiFi users

- Internal 6 high gain-antennas, select able 4G / 3G signal

- A stylish and slim design to fit in perfectly with your home

- With LED indicator display, see the status easily

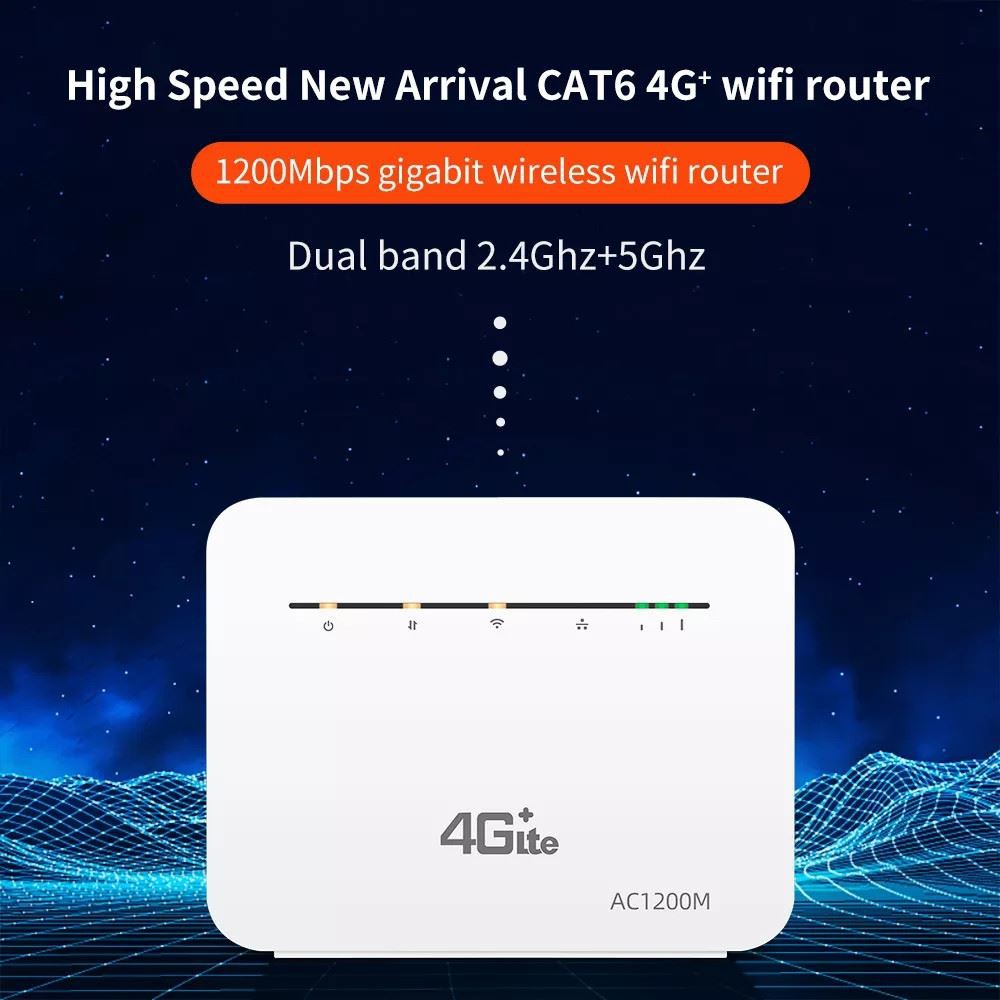

LTE Wireless router WIFI CPE

This model can work in most of Europe Asia Africa countries.

Network Frequency:

4G/LTE-FDD: B1/B3/B5/B8 (850/900/1800/2100Mhz)

4G/LTE-TDD: B38/B39/B40/B41 (1900/2300/2500/2600MHz)

3G/WCDMA: B1/B8 (2100/900MHz)

Detail

MTK7621DA plus ASR1826 CPU,

4G Module: LTECAT6

Support 310/100/1000Mbps RJ45,

Support multi-carrier (3G/4G LTE),

Power supply: DC 12V 2A,

Support external LED indicator,

Support antenna: 4WIFI plus 2LTE (Connector

Connector for external antenna, 5dBi gain.)

110/100/1000MbpsRJ45WAN

310/100/1000Mbps RJ45 LAN

SIM Card Size: Micro SIM card

wireless security functions

Support IPSec, PPTP, L2TPVPN

Support Firewall: IP, MAC, Port Filtering

Support SIM/USIM/cell lock card and traffic

Support TR069 and upgrade online

Support IPV4, IPV6Protocol

Package includes:

1 x 4G LTE CPE, 1 x RJ45 Cable,1 x Charger Adapter

Support 64 users to access the Internet at the same time.

It supports 4 users LAN interface to access the Internet, the WIFI speed has been fast and smooth.

CPE support 32 users

Safe Protection

Employ with WPA /WPA2 encryption technology you may set up the password or other information to protect your data safety.

safe wifi

Specification:

General Features
HW Basic information	CPU	ASR1826
	CPU	MTK7621DA
	RAM	CP: 1Gb LPDDR2; AP: 1Gb Embedded DDR3-1200 128MBytes (KGD)
	ROM	CP: 1Gb Nand flash; AP: 1Gb Nand flash
	Wifi	2, 4G, 5G
Antenna	Wifi antenna	PCB
Antenna	RF Antenna	Internal, compatible with External antenna (SMA2)
Data Rate	TDD-LTE CA	※ 3GPP R10, Category 6, DL 300Mbps UL 100Mbps
	FDD-LTE CA	※ 3GPP R10, Category 6, DL 224Mbps UL 50Mbps
	TDD-LTE	※ 3GPP R9, Category 4, DL 150Mbps UL 50Mbps
	FDD-LTE	※ 3GPP R9, Category 4, DL 150Mbps UL 50Mbps
	TD-SCDMA	/
	UMTS	※ 3GPP R7 DL 21.6Mbps UL 5.76Mbps

	EDGE/GPRS	/
WIFI Router setup	Protocol	Max users 32
		DHCP client / server, you can set whether to activate the DHCP service assigns IP addresses starting and ending addresses, set the gateway address; Support client list: Displays all the DHCP server to obtain IP address of the host, including MAC address, IP address obtained.
		Support terminal IP address, SSID, communication channel, security type, the administrator account and password factory setting.
		Support SSID and channel settings: Set SSID, communication channel (frequency band WiFi settings, select the range of WiFi support of the band all the available channels), WIFI function on/off, and the SSID broadcast on/off.
		Provides WEP, WPA-PSK, WPA2-PSK, etc.
		Support MAC and IP filtering
		Support VPN
	Firewall	Support IP Address Filter
		Support Port Mapping/Trigger
		Support DMZ
		Support Dn Filter
	HTTP upgrade	Local HTTP server preferred
	OTA (HTTP/TR069)	HTTP with PC, TRO69
	System Log	Display system during operation log information generated. Easy for users to understand the equipment through query log system events that have occurred on. Allows the user to clear the log operation.
	Connection-based	Hostess
	Firmware Update	Online Update via HTTP server; Local Update via WebGUI
Mandatory Features	Routing Features	Bridge Mode, Transparent Bridging (Non-NAT)
		Network Address Translation (NAT) Network Address Port Translation (NAPT)
		Generic Routing Encapsulation (GRE)
		Network Time Protocol (NTP) client/relay/server
		Dynamic Host Control Protocol (DHCP) client/server
	Security Features	Demilitarized Zone (DMZ)
		VPN Client/Server/ Pass-through (IPSec, L2TP, PPTP, SSH, OpenVPN)
		Point-to-Point Tunneling Protocol (PPTP), passthrough
		PPP over Ethernet (PPPoE)
		Authentifi cation, pap,chap and psk
	Management Features	Management via Command line Interface (CLI), SSH, SCP and HTTPS
	Management Features	Bandwidth Management/QoS
Power features	Working Voltage	12V
	Max Voltage Input	15V
	Battery	/
	working Current	TBD
	Max working current	TBD
Environmental Characteristics	Operating Temperature	0 degree - plus 40 degree
	Extreme working temperature	-10 degree - plus 50 degree
	Storage Temperature	-20 degree - plus 70 degree
	Relative humidity	10 percent -90 percent RH
Structure	I/O	RJ45;
	LTE SIM	Single
	T-Flash Card	Not support
Port	LTE SIM	Micro SIM
	Key	Key1: Restore, key2: WPS; Key3: Power
	Ethernet	LAN/WAN: RJ4511000M
	Ethernet	LAN: RJ4531000M
PC OS	Support: Win7/WinXP, MAC OS, Windows8, Android, LINUX
